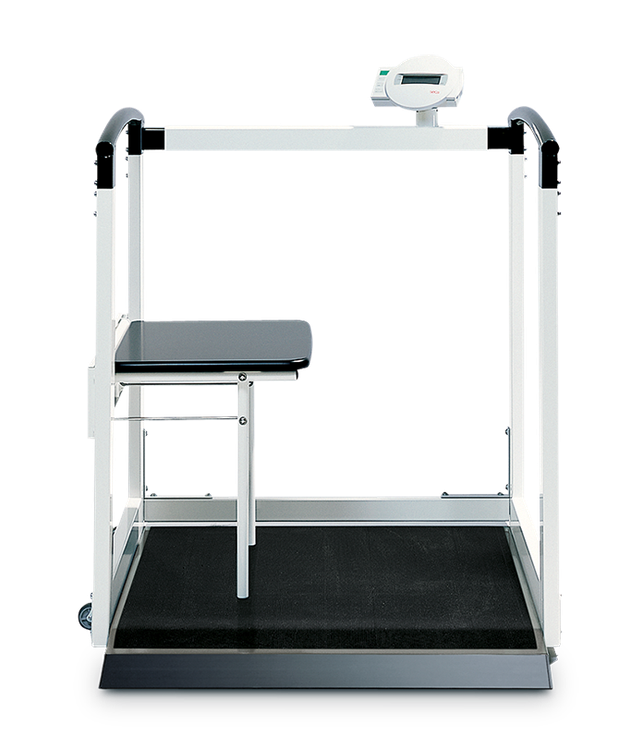

seca 684

EMR-validated multifunctional scale

Optimized: With integrated ramp.

The seca 684 is also a wheelchair, seat and handrail scale. This means that the multifunctional scale always offers you the ideal opportunity to weigh patients with restricted mobility safely and gently. The absolutely anchored handrail offers holding options on three-sides and a ramp ensures that wheelchair can roll safely onto the weighing platform. The display can be rotated 360° for an ease of reading.

  • Safe weighing of standing, sitting or wheelchair patients
  • Firmly anchored steel handrail for secure weighing of frail patients
  • Large, easy to access platform with non-slip surface
  • Wheel barrier provides extra safety
  • 360° swivel dispaly for easy reading
  • Mobile due to integrated transport wheels
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer

Brand new: Now available as seca 684 r with integrated rs232 interface.


Highlights.

Products designed down to the last detail.

Example applications

Patient can stand or sit when being weighed. The rotating display can be oriented towards the patient or medical personnel.

Example applications

Product information.

Technical product data and support.

Technical Data

Capacity: 790 lbs, 360 kg
Graduation (g): 50 g / 0,1 lbs
Power supply: Power adapter
Measure (W x H x D): 910 x 1100 x 1064 mm , 35,8 x 43,3 x 41,9 inch
Net weight: 59,5 kg , 131,2 lbs
Functions and Properties: PRINT, Overload protection, Auto-PRINT, Transport custors, TARE, Auto-clear, Pre-TARE, HOLD, Auto-HOLD, BMI, kg/lbs/sts switch-over, RESET, Damping
CE: CE 0123
Declaration of conformity.
seca_dec_634_644_656_664_674_676_684.pdf
seca_dec_634_644_656_664_674_676_684.pdf seca_dec_634_644_656_664_674_676_684.pdf
Manual.
seca_man_684_int.pdf
seca_man_684_int.pdf seca_man_684_int.pdf
Product sheet.
seca_pst_684_en-us.pdf
seca_pst_684_en-us.pdf seca_pst_684_en-us.pdf
Revit files.
seca_rev-file_684_685
seca_rev-file_684_685 seca_rev-file_684_685
