seca 274

seca 274 seca 274

seca 274

The stable glass platform of the seca 274 with integrated heel positioner guarantees precise measurement results and a secure foothold.

seca 274

360° view:
Press and hold the left mouse button to rotate the product.

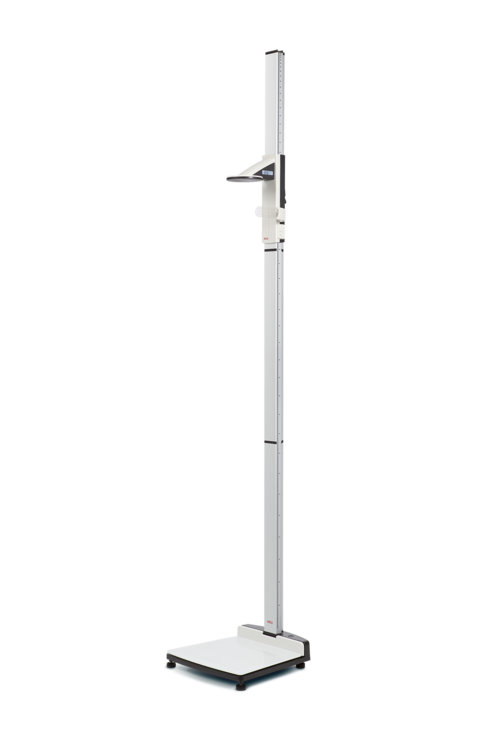

seca 274

Digital mobile stadiometer with wireless transmission.

  • Network-capable with seca 360° wireless technology.
  • Digitally measures small children and adults.
  • Frankfurt Line for precise positioning of head.
  • White backlit LCD display in headpiece.
  • Non-slip rubber mat with heel positioner.

If you are looking for a wireless solution for taking height measurements, you cannot go wrong with the free-standing digital stadiometer seca 274. Its individual parts of high-quality aluminum can be easily assembled and tightly screwed together and its measuring range from 30‒230 cm can be used for small children to adults. Additional benefits include a slip resistant glass platform and anti-tip column design, white backlit display on the headpiece and wireless data transmission. Data can be sent wirelessly to a seca digital printer with wireless transmission, a PC or a seca scale with wireless transmission that can calculate the BMI from height and weight measurements.


Highlights.

Products designed down to the last detail.

Example applications

With the patientʼs head precisely positioned, the seca Frankfurt Line guarantees exact measurements.

Example applications

The leveling feet allow firm footing, even on uneven surfaces.

Example applications

Product information.

Technical product data and support.

Technical Data

Measuring range in cm: 30 - 230 cm
Measuring range in inch: 11 inch - 7 ft 2 inch "
Graduation [Measuring Rod]: 1 mm / 1/8 inch
Power supply: Battery
Measure (W x H x D): 434 x 2394 x 466 mm , 17,1 x 94,3 x 18,3 inch
Net weight: 15 kg , 33,1 lbs
Functions and Properties: PRINT, Auto-PRINT, Transport custors, HOLD, Calibration, Autom. Calibration, Automatic switch-off, Wireless interface, SEND, RESET, Acoustic signals can be activated, Backlighting, cm/inch-switch-over, User-defined zero setting, Auto-SEND
CE: CE 0123
Declaration of conformity.
seca_dec_264_274.pdf
seca_dec_264_274.pdf seca_dec_264_274.pdf
Document.
seca_assin_264+274+284+285_int_band_1.pdf
seca_assin_264+274+284+285_int_band_1.pdf seca_assin_264+274+284+285_int_band_1.pdf
Manual.
seca_man_274_int_band_1.pdf
seca_man_274_int_band_1.pdf seca_man_274_int_band_1.pdf
Product sheet.
seca_pst_274+264_en_wl.pdf
seca_pst_274+264_en_wl.pdf seca_pst_274+264_en_wl.pdf
