EMR-validated wheelchair scale

The seca 664 has been specifically developed for weighing patients in a wheelchair. It has a particularly low platform with ramps, secure side rails and a slip-proof rubber pad – in short: It is particularly safe and comfortable. In addition, it can be folded together in just a few simple steps and stowed away in a space-saving manner. Its integration capacity allows direct integration into the digital patient file (EMR).



  • Extra-large, easily accessible platform: ideal for wheelchairs
  • High capacity of up to 360 kg
  • Side rails on the platform ensure safe rolling of a wheelchair onto and from the scale
  • Easy to fold together and transport
  • Non-slip rubber mat
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer

Highlights

Products designed down to the last detail.

Example applications

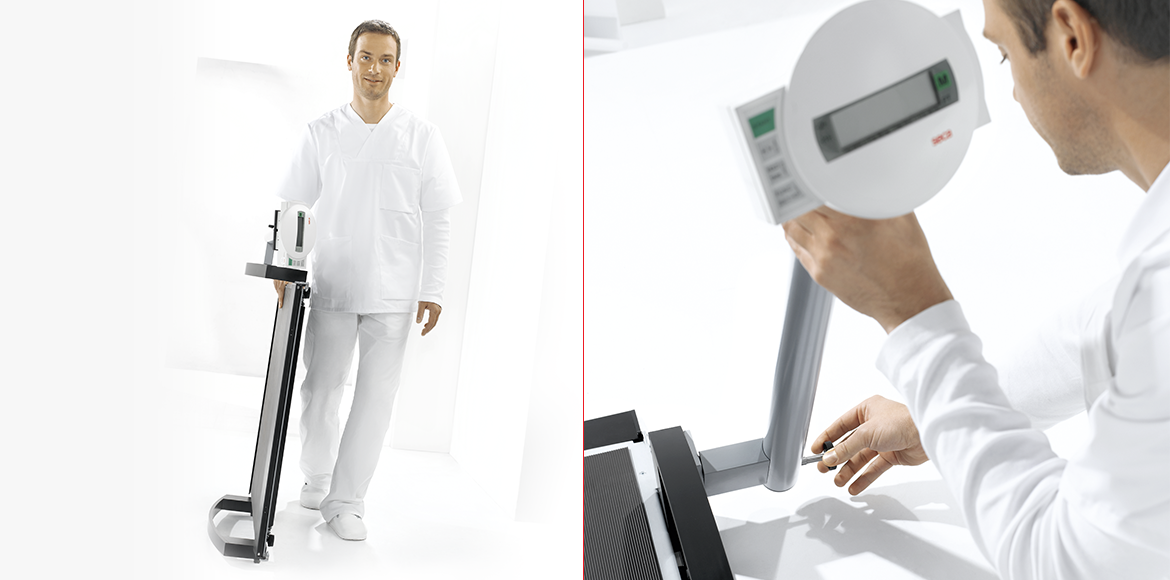

The seca 664 simply folds up and moves easily across the floor on castors.

Example applications

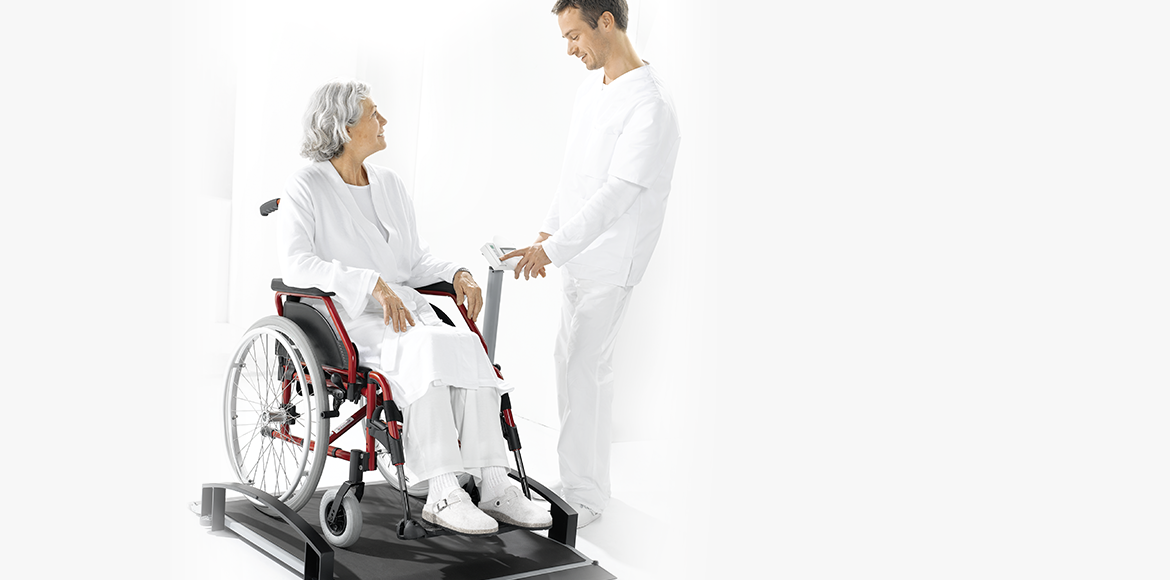

The platformʼs side rails keep a wheelchair safe and secure.


Product information

Technical product data and support

Technical Data

Capacity: 360 kg, 790 lbs
Graduation (g): 50 g / 0,1 lbs / 0,1 lbs
Power supply: Rechargable batteries, Power adapter
Measure (W x H x D): 1102 x 912 x 1150 mm , 43,4 x 35,9 x 45,3 inch
Net weight: 33,4 kg , 73,6 lbs
Functions and Properties: Overload protection, Transport custors, TARE, Auto-clear, Pre-TARE, HOLD, Auto-HOLD, BMI, kg/lbs/sts switch-over, Automatic switch-off, RESET, Damping
CE: CE 0123
