seca 264

seca 264 Mat

Mat

The easy-to-clean mat of the seca 264 puts the patientʼs feet in the right position and gives the barefoot patient a safe and comfortable footing.

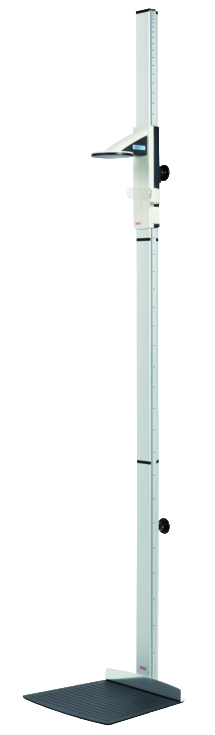

seca 264

Digital stationary stadiometer with wireless transmission.

  • Network-capable with seca 360° wireless technology.
  • Digitally measures small children and adults.
  • Frankfurt Line for precise positioning of head.
  • White backlit LCD display in headpiece.
  • Non-slip rubber mat with heel positioner.

The goal of accomplishing more in fewer steps is as important in medicine as in other fields. The stadiometer seca 264 helps make that possible. For example, the heel positioner and the seca Frankfurt Line on the headpiece ensure that the patient is in the right position and thereby contribute to obtaining accurate measurements. Height measurements can be read with a quick glance at the white backlit display on the headpiece. Wireless data transmission is made to a seca digital printer with wireless transmission, a PC or a wireless scale.


Highlights.

Products designed down to the last detail.

Example applications

Nurse positioning child.

Example applications

The white backlit display on the headpiece is very easy to read.


Product information.

Technical product data and support.

Technical Data

Measuring range in cm: 30 - 220 cm
Measuring range in inch: 11 inch - 7 ft 2 inch "
Graduation [Measuring Rod]: 1 mm / 1/8 inch
Power supply: Battery
Measure (W x H x D): 428 x 2318 x 474 mm , 16,9 x 91,3 x 18,7 inch
Net weight: 5 kg , 11 lbs
Functions and Properties: PRINT, Wall-mounting, Auto-PRINT, HOLD, Calibration, Autom. Calibration, Automatic switch-off, Wireless interface, SEND, RESET, Acoustic signals can be activated, Backlighting, cm/inch-switch-over, User-defined zero setting, Auto-SEND
CE: CE 0123
Declaration of conformity.
seca_dec_264_274.pdf
seca_dec_264_274.pdf seca_dec_264_274.pdf
Document.
seca_assin_264+274+284+285_int_band_1.pdf
seca_assin_264+274+284+285_int_band_1.pdf seca_assin_264+274+284+285_int_band_1.pdf
Manual.
seca_man_264_int_band_2.pdf
seca_man_264_int_band_2.pdf seca_man_264_int_band_2.pdf
Product sheet.
seca_pst_274+264_en_wl.pdf
seca_pst_274+264_en_wl.pdf seca_pst_274+264_en_wl.pdf
