seca 685

EMR-validated multifunctional scale

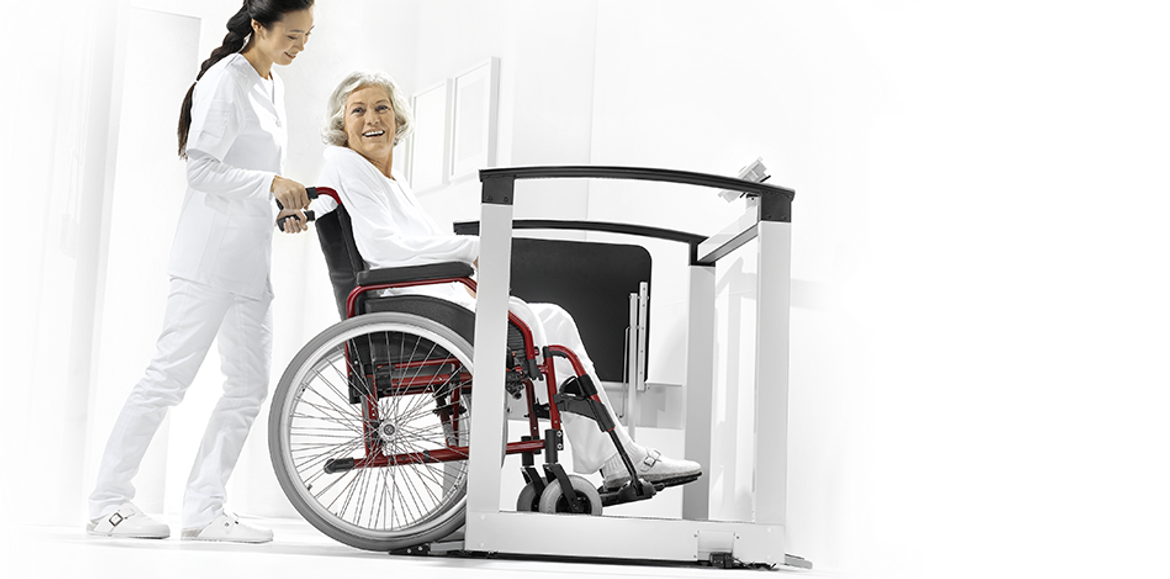

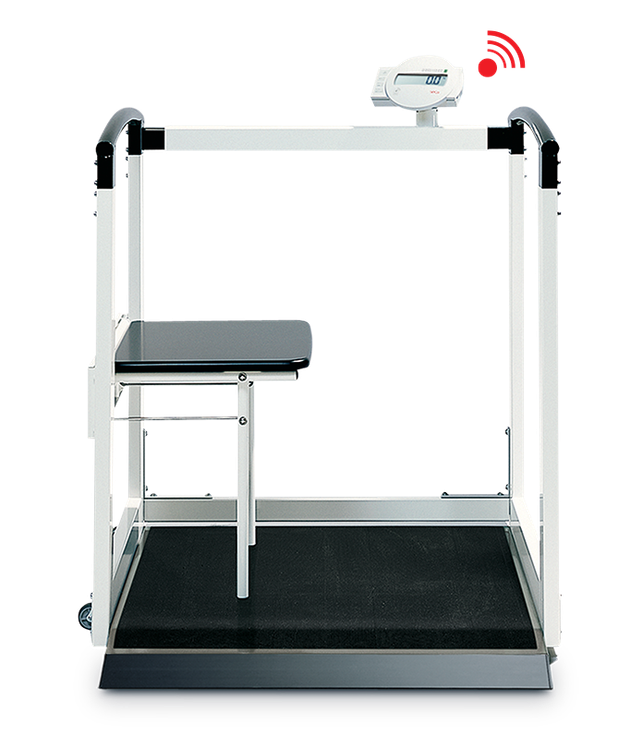

The seca 685 is also a wheelchair, seat and handrail scale. This means that the multifunctional scale always offers you the ideal opportunity to weigh patients with restricted mobility safely and gently. The absolutely anchored handrail offers holding options on three-sides and a ramp ensures that wheelchair can roll safely onto the weighing platform. The display can be rotated 360° for an ease of reading.

  • Safe weighing of standing, sitting or wheelchair patients
  • Firmly anchored steel handrail on both sides serves as ideal standing aid
  • Large, easy to access platform with non-slip surface
  • Wheel barrier provides extra safety
  • 360° swivel dispaly for easy reading
  • Mobile due to integrated transport wheels
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer

Highlights.

Products designed down to the last detail.

Example applications
Example applications
Example applications

Product information.

Technical product data and support.

Technical Data

Approval class: III (3)
Capacity: 300 kg
Graduation (g): 100 g <200 kg> 200 g
Power supply: Power adapter
Measure (W x H x D): 910 x 1100 x 1064 mm
Net weight: 59,5 kg
Functions and Properties: PRINT, Overload protection, Auto-PRINT, Transport custors, TARE, Auto-clear, Autom. Weighing range switch-over, Pre-TARE, HOLD, Auto-HOLD, BMI, Automatic switch-off, Wireless interface, RESET, Damping
CE: CE 0109, 0123
Declaration of conformity.
seca_dec_635_645_657_665_675_677_685.pdf
seca_dec_635_645_657_665_675_677_685.pdf seca_dec_635_645_657_665_675_677_685.pdf
Manual.
DE / EN / FR / IT / ES / PT / PL
DE / EN / FR / IT / ES / PT / PL DE / EN / FR / IT / ES / PT / PL
Product sheet.
seca_pst_685_en.pdf
seca_pst_685_en.pdf seca_pst_685_en.pdf
Revit files.
seca_rev-file_684_685
seca_rev-file_684_685 seca_rev-file_684_685
