seca 763

Electronic weighing and measuring station with automatic BMI calculation

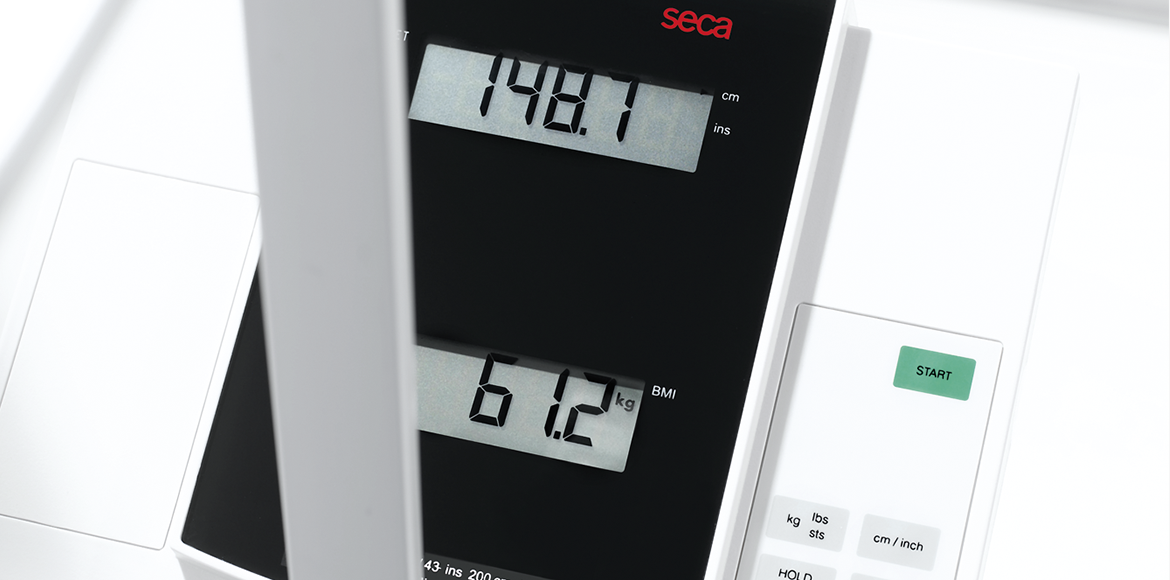

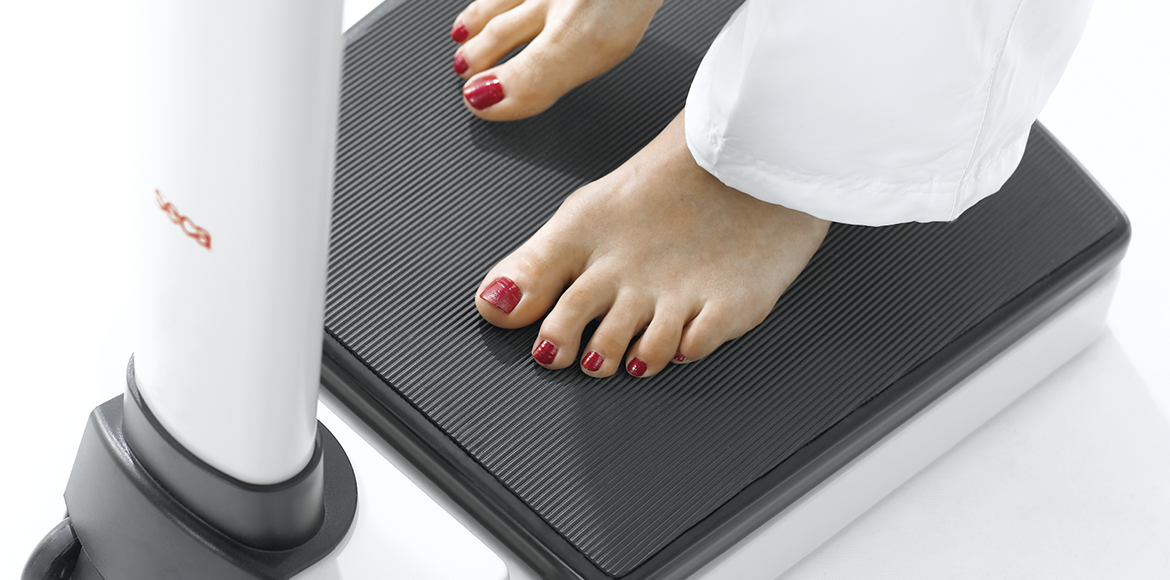

After weighing and measuring, both values are indicated on two LCDs integrated into the display panel. On the basis of these values, the seca 763, at the touch of a button, automatically calculates the BMI of the patient. This value provides information on the general nutritional condition of the patient on the basis of the recognised WHO standard. With its capacity of 250 kg, its low platform and very robust design, the weighing and measuring station is particularly suitable for heavyweight patients.


Highlights.

Products designed down to the last detail.

Example applications
Example applications
Example applications

Product information.

Technical product data and support.

Technical Data

Capacity: 250 kg
Graduation (g): 50 g
Measuring range in cm: 110 - 200 cm
Graduation [Measuring Rod]: 1 mm
Power supply: Power adapter
Measure (W x H x D): 360 x 2150 x 690 mm
Net weight: 16,7 kg
Functions and Properties: Overload protection, Date and time in print-out, Measuring rod, Transport custors, TARE, HOLD, Auto-BMI, kg/lbs/sts switch-over, cm/inch-switch-over
CE: CE 0123
Declaration of conformity.
seca_dec_703_763_769.pdf
seca_dec_703_763_769.pdf seca_dec_703_763_769.pdf
Manual.
seca_man_763+764_int_printer-module.pdf
seca_man_763+764_int_printer-module.pdf seca_man_763+764_int_printer-module.pdf
Manual.
seca_man_763_int.pdf
seca_man_763_int.pdf seca_man_763_int.pdf
Product sheet.
seca_pst_763_en.pdf
seca_pst_763_en.pdf seca_pst_763_en.pdf
Product sheet.
seca_pst_764+763_en.pdf
seca_pst_764+763_en.pdf seca_pst_764+763_en.pdf
