seca mVSA 535

seca mVSA 535 Temperature

Temperature

  • Two different thermometer technologies (in-ear or oral/axial thermometer, rectal temperature probe)
  • Intelligent probe cover removal concept for both thermometer technologies
  • Temperature probe (oral/axial, rectal) with securing device
  • Removable temperature probe storage with drain slots (hygiene)

NIBP

NIBP

  • Inflation and deflation measurement
  • Inflation measurement is significantly shorter with a lower pressure load
  • Identification of incorrectly positioned cuffs
  • Individual or multiple measurement individually adjustable
  • Different cuff sizes available

SpO2

SpO2

  • High-precision and clinically validated SpO2 technology
  • Soft or hard clips
  • Easy-to-clean soft clips made of silicone

seca mVSA 535

360° view:
Press and hold the left mouse button to rotate the product.

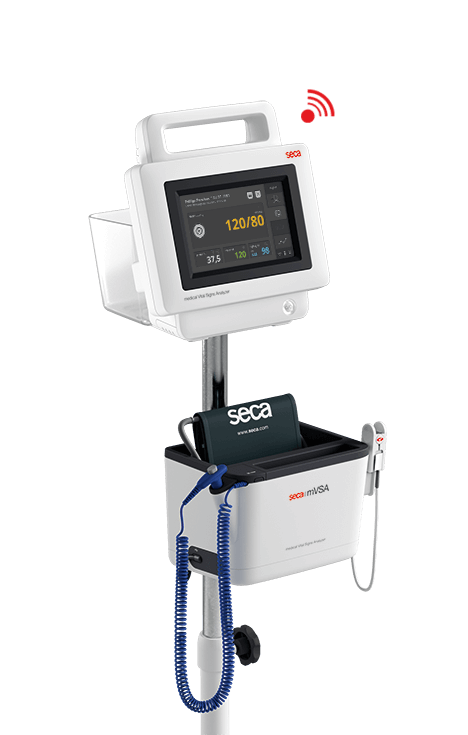

seca mVSA 535

EMR-validated Spot-check Vital Signs Monitor

Acquiring patient’s vitals is a routine task, performed on almost every patient. The seca mVSA 535 was designed to make this task as easy and efficient as possible. Staff at any level can operate the spot-check monitor due to its intuitive touch screen and self-explanatory user interface. The vitals capture is simple and fully validated for HL7 and many EMR systems. Connectivity to seca scales and measuring stations due to seca 360° proximity is also a plus as well as the unique seca EQ BP™ technology. The seca mVSA fits perfectly into your existing workflows and frees up time and resources to improve patient care.

  • Easy to operate spot-check monitor to capture all basic routine patient vitals in less than 60 seconds
  • Quick and accurate blood pressure measurement in under 20 seconds
  • Configurable seca EQ BP™ average mode (BP30) provides true screening of hypertension
  • seca scale connectivity through seca 360° proximity: One integration interface for all seca devices
  • World-class service program with no downtime
  • Long lasting battery for up to 150 measurements on one single charge
  • Convincing data storage: All measurements stored and available for later processing
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer



Learn more


Highlights.

Products designed down to the last detail.

Highlight
Highlight
Highlight

Product information.

Technical product data and support.

Technical Data

Interfaces: WLAN, seca 360° wireless technology, USB 2.0, Ethernet
Medical device class: II
Display type: 7" Touchscreen-Display
Temperature measurement method: axillary/oral, rectal (direct or predictive)
SpO2 Measurement method: Pulse oximetry
Blood pressure measuring procedure: oscillometric, deflation or inflation measurement switchable between single measurement (seca EQ BP ®) and configurable multiple measurements (BP 30)
Power supply: Internal rechargeable lithium-ion battery, Built-in power adapter
Measure (W x H x D): 254 x 262 x 278 mm (depending on configuration)
Net weight: 2.7 kg (depending on configuration)
