seca mBCA 514

seca mBCA 514 Touchscreen display

Touchscreen display

The integrated touchscreen display not only allows you to enter patient data; it also enables you to monitor the progress of the measurement and conveniently analyze the results from many different perspectives.

Standing aid

Standing aid

The unique standing aid guarantees that the patient always stands in the same measuring position.

seca mBCA 514

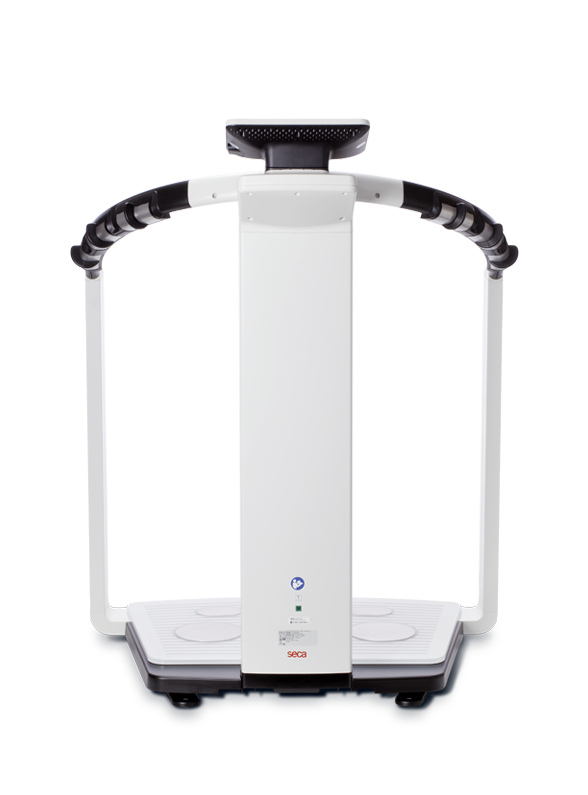

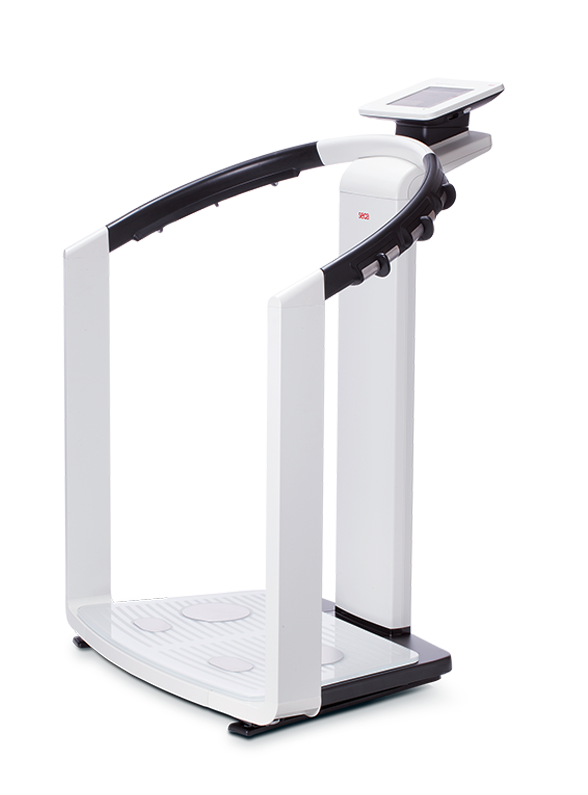

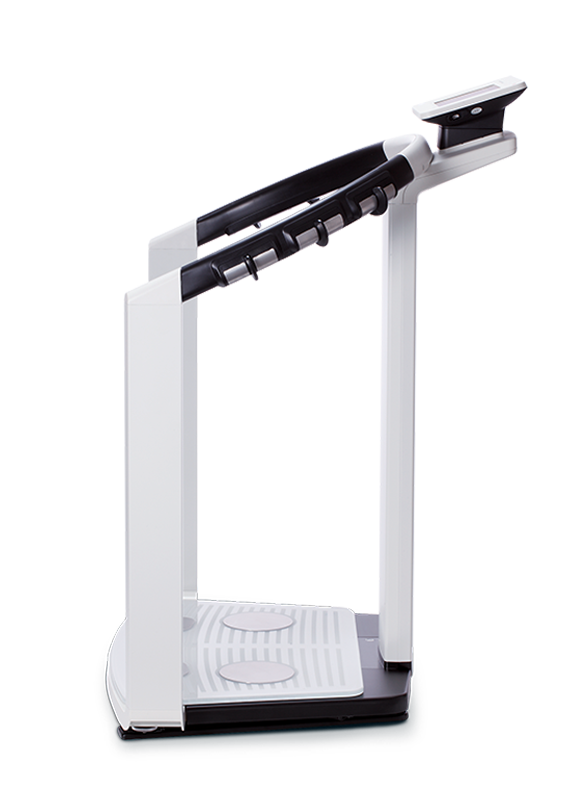

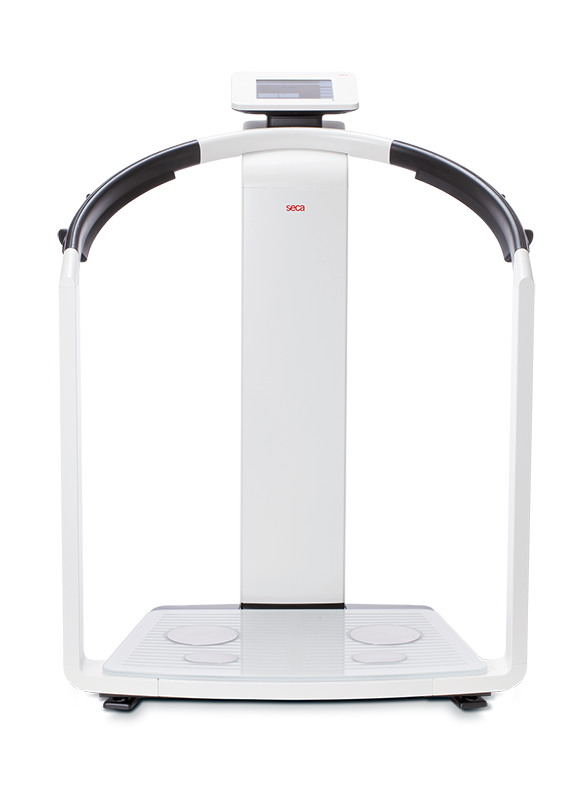

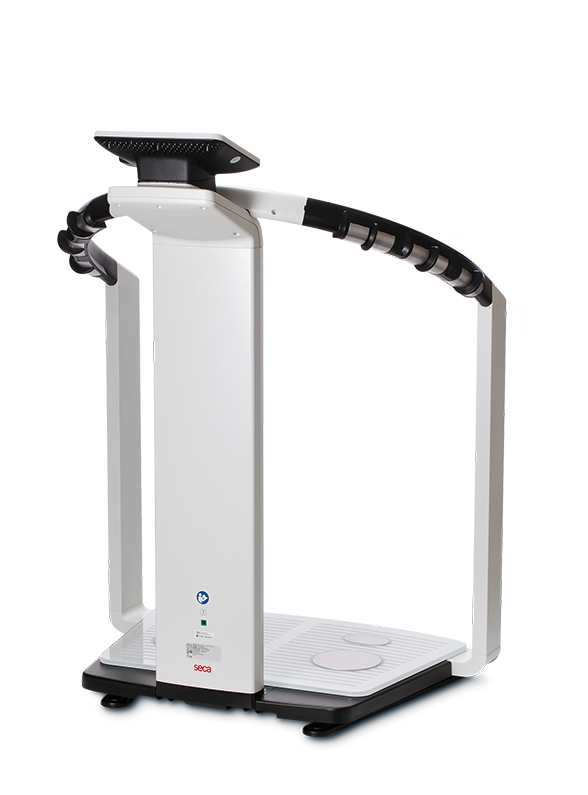

360° view:
Press and hold the left mouse button to rotate the product.

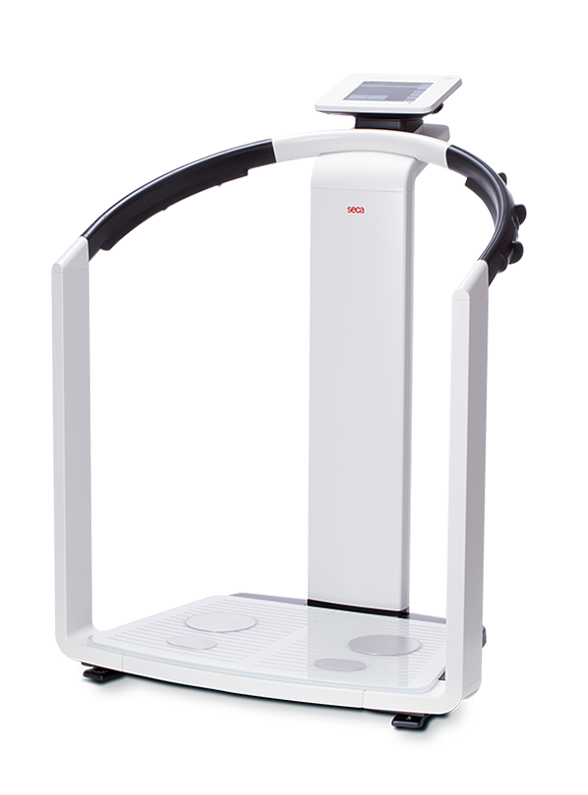

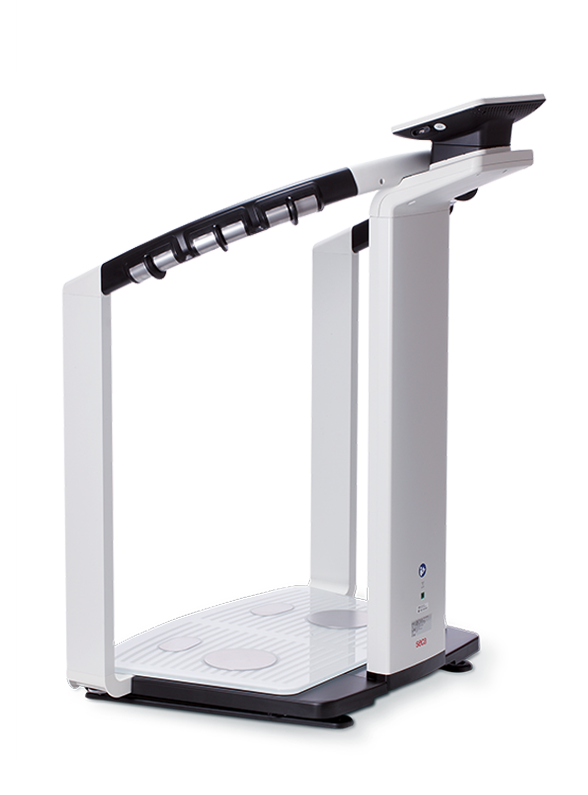

seca mBCA 514

medical Body Composition Analyzer

The medical Body Composition Analyzer (mBCA) by seca breaks down weight into body compartments relevant to the practice of medicine, namely, Fat Mass and Fat-Free Mass, Body Water (made up of extracellular water and intracellular water) and Skeletal Muscle Mass. Measurements are processed by six analytical modules and presented in easy-to-understand graphics. seca has conducted validation studies¹ that compare its measurement results with the scientific gold standard. This level of precision is found in the device itself, e.g., in the standing aid function, which guarantees that the subject is always measured in the right position, in the hand-held electrodes which prevent measurement errors and in the large glass platform which is suitable for weighing patients up to 600 lbs. Additional advantages include the short measurement time of less than 20 seconds and the simple and intuitive navigation over the touch-screen display. In brief, the seca mBCA is the best help for the diagnosis of many diseases such as current epidemics of obesity, diabetes or malnutrition. ¹: www.seca.com/studies.



Learn more



  • Precise. Proven by international medical studies.
  • Fast. Measurements executed in 17 seconds.
  • Simple. Six analytical modules and intuitive user navigation on touch-screen display.
  • Versatile. Analysis of fat and fat-free mass, total body water, extracellular water, intracellular water and skeletal muscle mass.




Highlights

Products designed down to the last detail.

Example applications

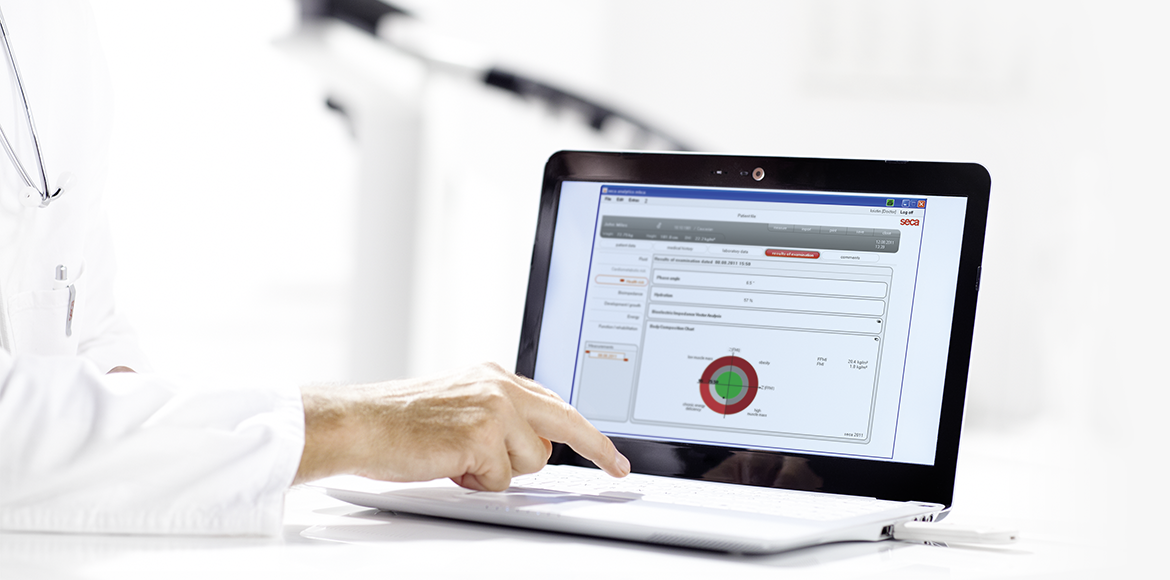

The data and measurements are sent via an Ethernet or wireless connection to the PC software.

Example applications

The intuitive user navigation permits operation of the seca mBCA 514 without hours of training.

Example applications

The large, easy-access, fast cleaning,safety glass weighing platform is suitable for use by patients weighing up to 300 lbs.

Example applications

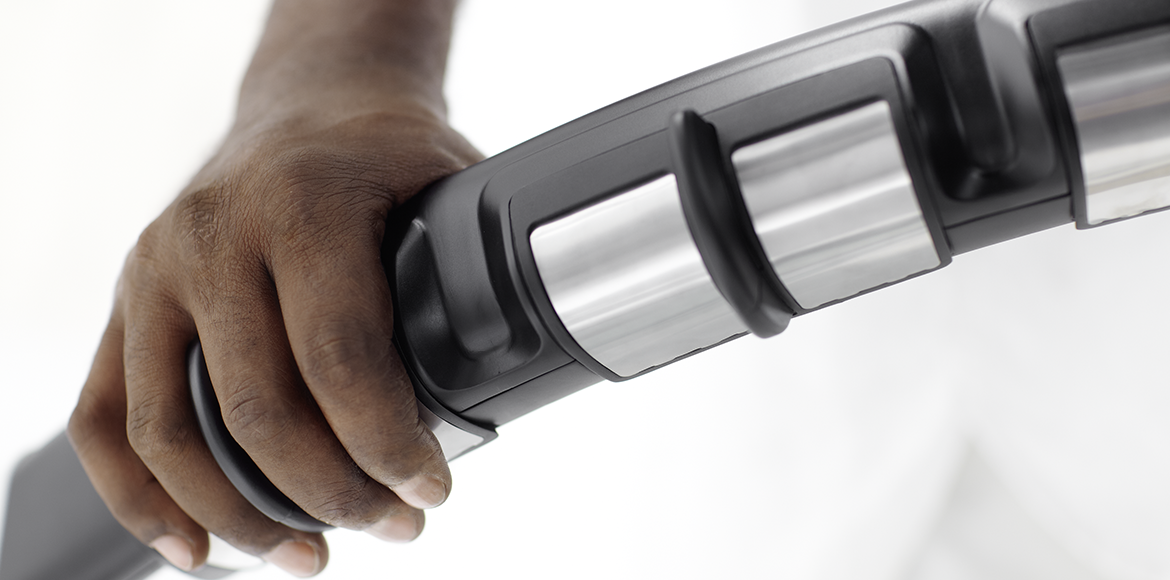

Hand-held electrodes prevent measurement errors and ensure that results are always reproducible.

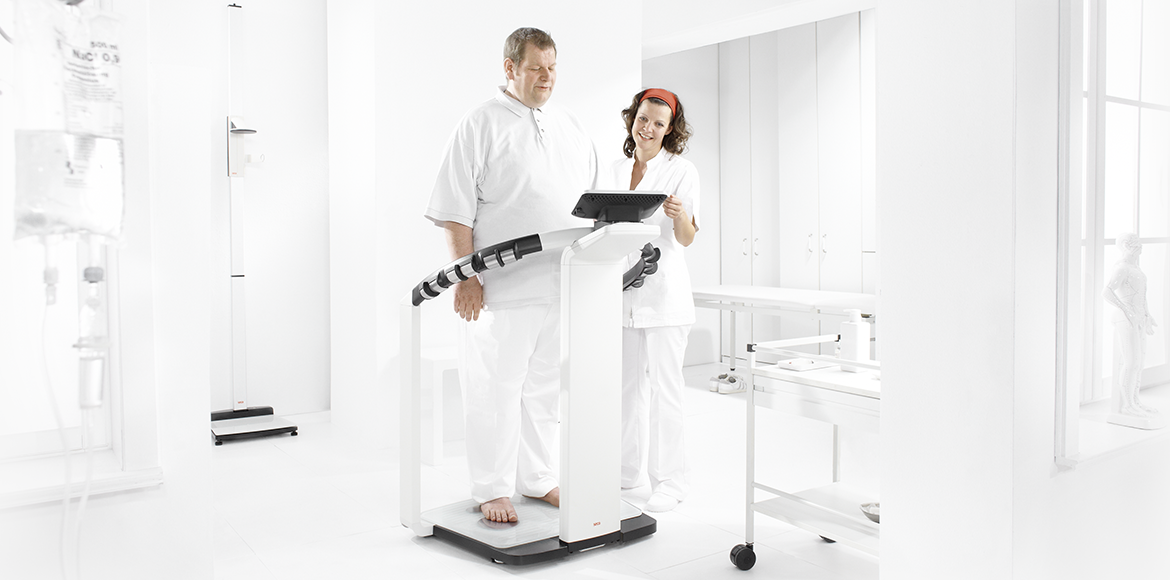

Application
Application
Application

Product information

Technical product data and support

Technical Data

Capacity: 660 lbs
Graduation (lbs): 0.1 lbs < 330 lbs > 0.2 lbs
Power supply: Power adapter
Measure (W x H x D): 38,4 x 49,3 x 32,6 inch
Net weight: 79,4 lbs
Measurement time: max. 20 seconds
Measurement segment: right arm, left arm, right leg, left leg, right half of body, left half of body, torso
Measurement method: 8-point Bioelectrical Impedance Analysis
Measurement frequencies: 1; 1,5; 2; 3; 5; 7,5; 10; 15; 20; 30; 50; 75; 100; 150; 200; 300; 500; 750; 1.000 kHz
Measurement current: 100 µA
Functions and Properties: User-defined zero setting, Backlighting, Acoustic signals can be activated, RESET, SEND, Wireless interface, Calibration, Auto-BMI, BMI, Step-Off, Auto-HOLD, HOLD, Pre-TARE, Patient data input, Autom. Weighing range switch-over, Weighing range switch-over, TARE, Date and time in print-out, Overload protection
CE: CE 0123
